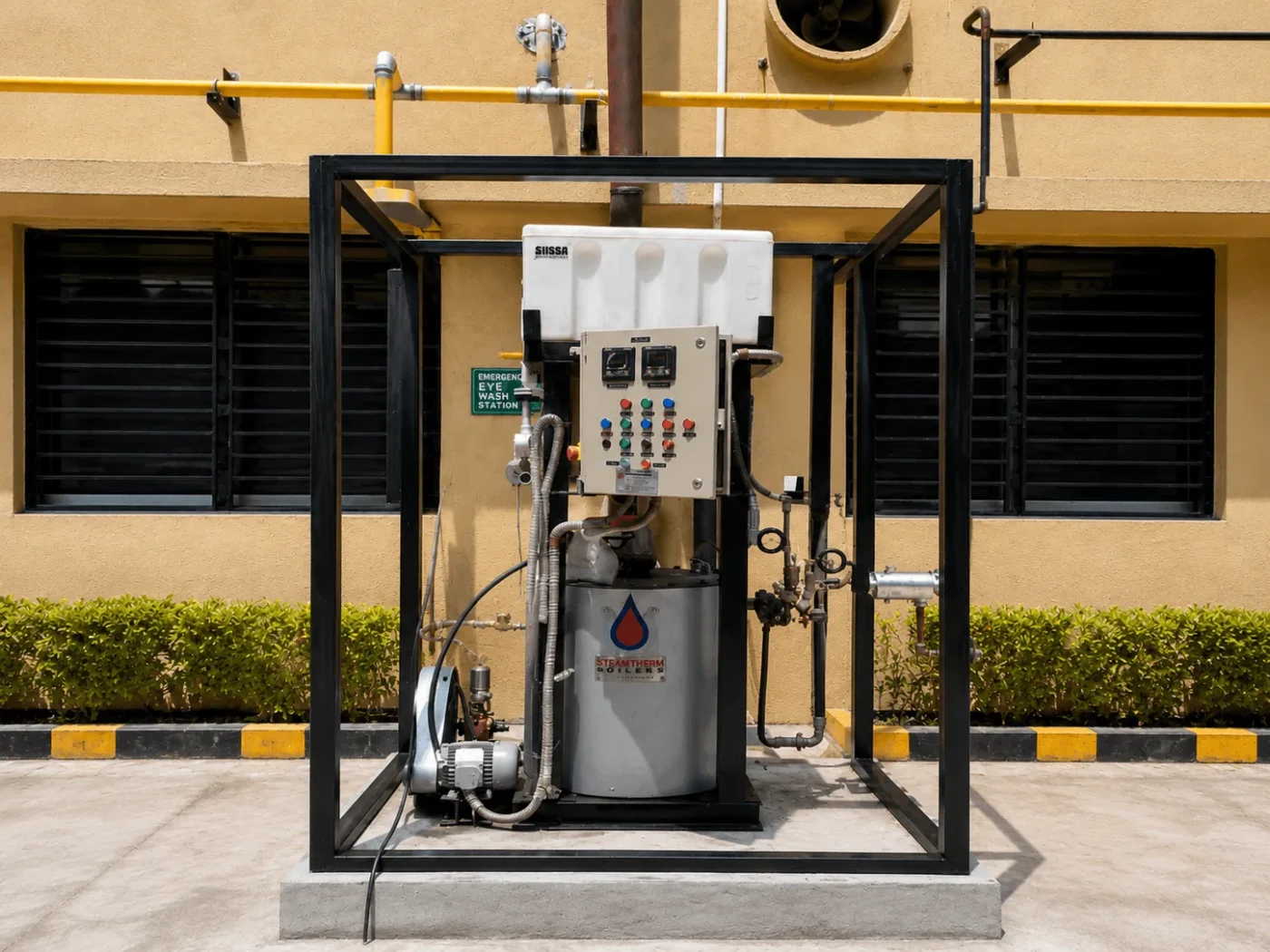

COMAX
COMAX Series – Compact Power. Efficient Steam. Reliable Performance.
The COMAX Series is a compact, fully packaged steam boiler designed for efficient and reliable steam generation in small and medium industrial applications. With a space-saving design, high thermal efficiency, and fully automatic operation, the COMAX Series delivers quick steam generation while reducing fuel consumption and operating costs. It is the ideal choice for industries requiring a compact yet powerful steam solution.
Capacity Range50 Kg/hr to 100 Kg/hr
Working Pressure7.0 kg/cm²(g) to 10.54 kg/cm²(g)
Boiler TypeCoil type packaged Water Tube Boiler
Fuel OptionsDiesel, LDO, Natural Gas, LPG
Technical Data
Technical Specifications
| Capacity Range | 50 Kg/hr to 100 Kg/hr |
|---|---|
| Working Pressure | 7.0 kg/cm²(g) to 10.54 kg/cm²(g) |
| Boiler Type | Coil type packaged Water Tube Boiler |
| Fuel Options | Diesel, LDO, Natural Gas, LPG |
| Thermal Efficiency | 90% ± 2% |
| Construction | Three-Pass |
| Standards | Non-IBR |
Key Features
- Compact & Fully Packaged Design
- Three-Pass High-Efficiency Construction
- Fully Automatic Burner Operation
- Quick Steam Generation
- Low Fuel Consumption
- Low Maintenance Cost
- User-Friendly Controls
- Quiet & Reliable Operation
- Easy Installation & Commissioning
- Long Service Life
Applications
Food ProcessingDairy IndustryPharmaceutical IndustryHotels & Commercial KitchensHospitalsLaundry & Dry CleaningChemical IndustryPackaging IndustryTextile IndustrySmall & Medium Manufacturing Units
Advantages
- Space-Saving Design
- High Thermal Efficiency
- Reliable Steam Supply
- Low Operating Cost
- Easy Maintenance
- Eco-Friendly & Low Emission Operation
