Steam Boilers

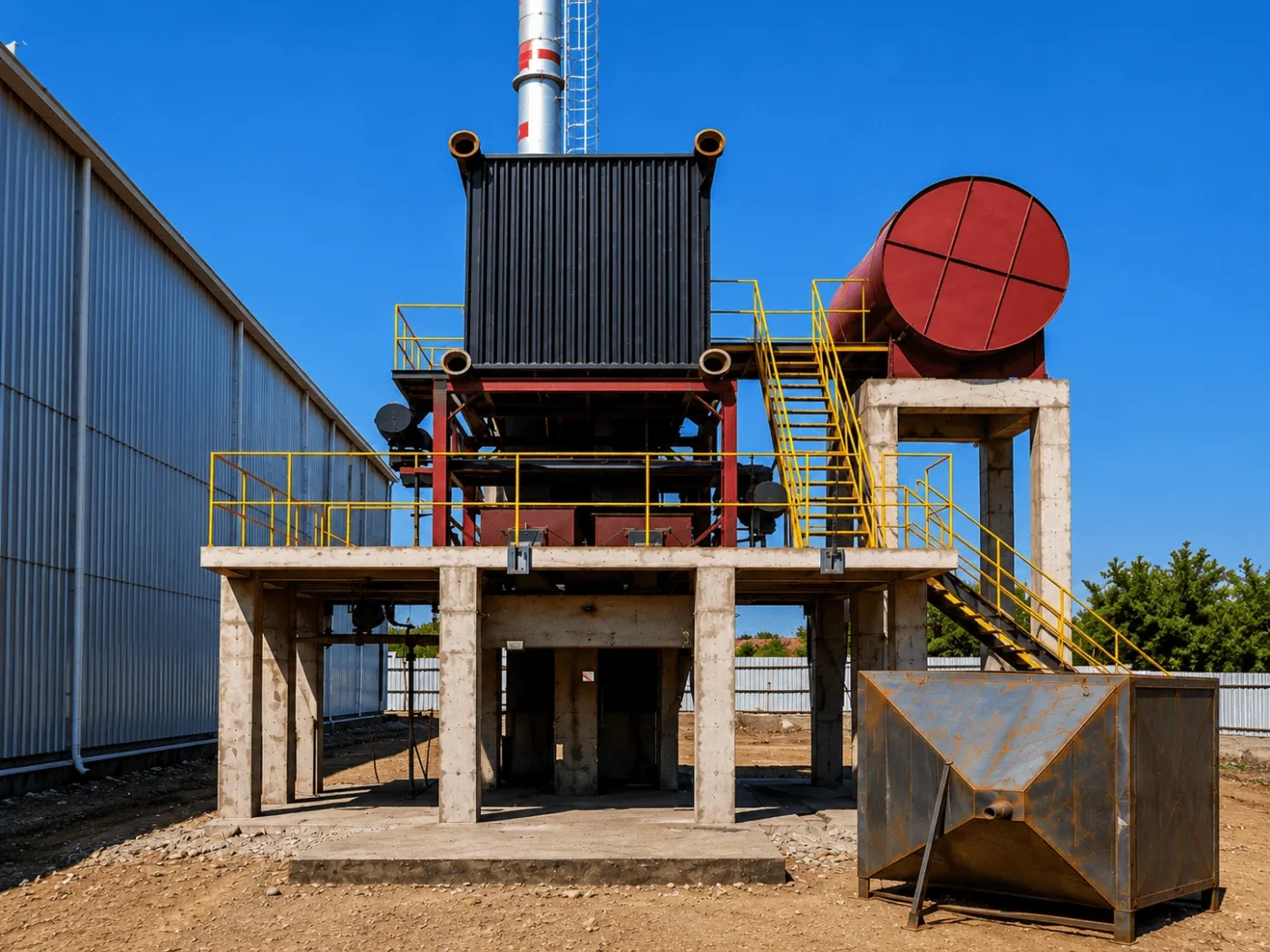

COMBIMAX (FBC)
COMBIMAX Series – Advanced FBC Technology for Maximum Efficiency & Minimum Fuel Cost.
The COMBIMAX Series is a high-efficiency Fluidized Bed Combustion (FBC) Steam Boiler designed for continuous steam generation using a wide range of low-cost solid fuels. Its advanced FBC combustion technology ensures complete fuel burning, uniform temperature distribution, higher thermal efficiency, and significantly lower emissions. The COMBIMAX Series is an ideal solution for industries seeking reliable, economical, and environmentally friendly steam generation.
Capacity Range2 TPH to 25 TPH
Working Pressure10.54 kg/cm²(g) to 32 kg/cm²(g)
Steam TemperatureSaturated / Superheated (Optional)
Thermal EfficiencyUp to 88% ± 2%
Technical Data
Technical Specifications
| Capacity Range | 2 TPH to 25 TPH |
|---|---|
| Working Pressure | 10.54 kg/cm²(g) to 32 kg/cm²(g) |
| Steam Temperature | Saturated / Superheated (Optional) |
| Thermal Efficiency | Up to 88% ± 2% |
| Boiler Type | Water Tube / FBC Fired |
| Standards | IBR Compliant |
Fuel Options
Pulverized CoalSaw DustRice HuskAgro WasteBagasseBiomass PelletsWood ChipsGroundnut ShellCoconut ShellOther Biomass Fuels
Key Features
- Advanced Fluidized Bed Combustion (FBC) Technology
- High Thermal Efficiency (Up to 88% ± 2%)
- Complete Fuel Combustion
- Low Fuel Consumption
- Uniform Heat Distribution
- Multi-Fuel Firing Capability
- Low Emissions & Environment Friendly
- Automatic Fuel Feeding System
- Low Maintenance Cost
- Rugged Construction for Long Service Life
- Stable Steam Generation under Variable Loads
- PLC/BMS Automation (Optional)
Applications
Food ProcessingDairy IndustryTextile IndustryChemical PlantsPharmaceutical IndustryPaper & PulpSugar MillsDistilleriesRice MillsEdible Oil PlantsRubber & PlasticPlywood & LaminateEngineering Industries
